4" Rough Country Suspension Lift Kit (RAM 1500 4WD 2012-2018 & Classic)
- We offer payment options. Learn more
- Lowest Price Guarantee!
Product Details
After you complete your purchase, one of our experts will contact you to verify proper fitment.
The vehicle information you provided will be saved.
*All other brand lift kits are available.
FEATURES
- Maintains factory ride quality.✔
- Increased ground clearance.✔
- Levels the front with the rear of the vehicle.✔
OPTIONAL N3 LOADED STRUTS
• Includes pre-loaded coil
• Maintains smooth, factory-like ride
• Increased ground clearance
• Engineered for lifted applications
• Infinitely Variable Damping
• Leak-proof piston seal
• Massive 1 3/8in Bore
• Silver powder coat finish
OPTIONAL V2 MONOTUBE SHOCKS
• Monotube design
• Internal floating piston
• Nitrogen-charged
• 46mm high-flow piston
• Fast heat dissipation
• 36kN Tensile Strength
• Mounts inverted
• T6061 brushed aluminum body
⚠ Notes - Important ⚠
- Will fit Eco Diesel engine models.✔
- Kit is NOT recommended for AWD models.✔
- Does NOT fit models with factory air ride suspension.✔
- "TRX" models will achieve approximately 1" of additional lift.✔
- Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.✔
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
2012-2018 | 4WD | Ram | 1500 |
2019-2023 | 4WD | Ram | 1500 Classic |
SPECS
ITEM # | RCD126 |
MFG # | 33331, 33370, 33332, 33371 |
Height | 4" |
Est. Install Time | 4 - 6 hours |
Instructions |
Recommended Tires & Wheels | ||||
Tire | Wheel | Bolt Pattern | Offset | Note |
35x12.50R20 | 20x9 | 5x5.5 | -12 | - |
35x12.50R20 | 20x9 | 5x5.5 | +0 | - |
35x12.50R20 | 20x9 | 5x5.5 | +0 | Minor trimming |
35x12.50R20 | 20x9 | 5x5.5 | +1 | - |
35x12.50R20 | 20x9 | 5x5.5 | +1 | Minor trimming |
295/60R20 | 20x9 | 5x5.5 | +1 | - |
35x12.50R20 | 20x10 | 5x5.5 | -25 | - |
35x12.50R20 | 20x10 | 5x5.5 | -24 | - |
35x12.50R20 | 20x10 | 5x5.5 | -19 | - |
295/60R20 | 20x10 | 5x5.5 | -19 | - |
35x12.50R20 | 20x10 | 5x5.5 | -18 | - |
35x12.50R22 | 22x10 | 5x5.5 | -25 | - |
35x12.50R22 | 22x10 | 5x5.5 | -24 | - |
35x12.50R22 | 22x10 | 5x5.5 | -19 | - |
35x12.50R22 | 22x10 | 5x5.5 | -19 | Minor trimming |
35x12.50R22 | 22x10 | 5x5.5 | -18 | - |
35x12.50R22 | 22x10 | 5x5.5 | -18 | Minor trimming |
⚠ Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

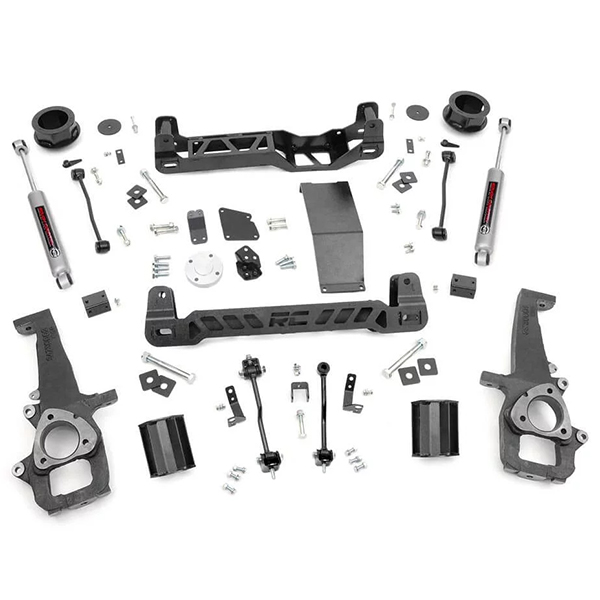

IN THE BOX
PARTS |
Lifted knuckles Strut spacers Front crossmember Rear crossmember Differential drop brackets Driveshaft spacer Sway-bar links Skid plate Hardware Upper coil spacers Bump-stop brackets Brake line brackets |
Local pickup welcome.
Some vehicles may require additional modifications or parts.
Guaranteed Fitment.
Questions Call us at (888) 814-1158
Part Number: 33331,33370,33332,33371
